EPM Out-of-Stack Support
PMI can now offer its own Out-of-Stack sampling probe, which is based on the EPM out-of stack probe, either the
0797.380 or the 0797.381 model. We also offer new diluters. The diluter is the actual diluting apparatus which
uses the same technique as the in-situ probe to dilute the sample.

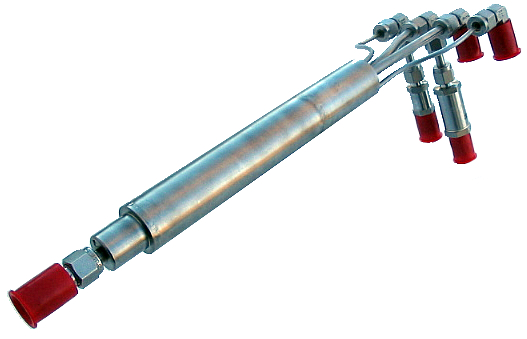

The PMI Diluter
We offer a comprehensive range of spare parts for the 797.380 and 797.381 including orifices, gaskets, filters
If you don't see the a part you need on this list, call us. We will do our best to help you find the part or a
PMI also offers an upgrade to existing probes which have a Stainless Steel ferrule connection at the diluter tip.
This can be cost-effectively replaced with a Graphite Ferrule connection. Call us for more information if you wish
to discuss the applicability of this modification to your sampling conditions.
5000 Ridgemont Walk, Smyrna, GA 30080
Ph: 404-791-1477 Fax: 404-506-9873
Part # EPM # Description
PMI3120* 2126.064 Glass Orifice, 20 ml/min.
PMI3150* 2126.047 Glass Orifice, 50 ml/min.
PMI3199 2049.020 Ferrule, Graphite, Box of 10
PMI3190 2126.081 Quartz Wool Filter, 10g
PMI3105 0042.213 Coarse Filter Assy
PMI3106 2135.190 Gasket, Coarse Filter Assy
PMI3104 2135.191 Gasket, Flange
PMI3186 2126.232 Inline Filter, 60 micron
PMI3187 2126.227 Element, Filter, 60 micron
PMI3103 0797.370 Bypass Pump
PMI3109 0042.312 Gasket, Bypass Pump
PMI3181 2136.233 Check Valve
PMI3127 0042.129 Heater
PMI3116 0042.211 Thermocouple, K Type
PMI300012 0797.390 Diluter
PMI300011 0797.391 Diluter
* Orifices are available in a range of sizes from 20 ml/min to 500 ml/min.
